Rivian R1S: The Singular, Future-facing SUV (A-to-Z Specifications)

Rivian R15 Suv

Have you ever seen the popular HBO TV show called, The Righteous Gemstones?

If not then you must add this TV series to your watchlist and those who have watched it are conscious about where we are heading to!

In this renowned TV show, the Gemstone family drive all-white R1S SUVs as part of their flashy, electric-car-loving megachurch dynasty. But do you know why the makers chose this tour de force?

Because the Rivian R1S symbolises honest-confidence wrapped in the quiet poise of a premium electric cruiser. A vehicle that is conscious about the era it belongs to: the electrified, adventure-first decade where torque and design are prioritised equally.

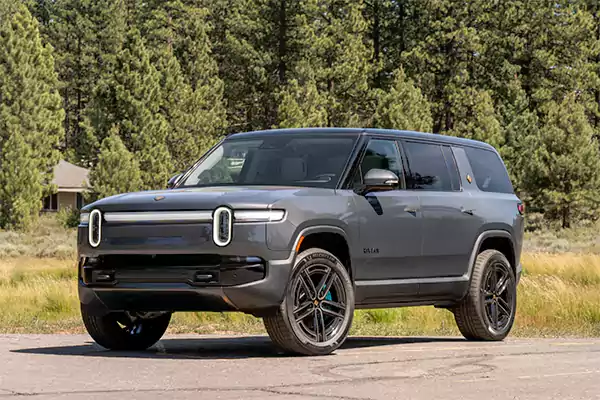

rivian r1s

Fascinating, right? Now, let’s gauge its performance numbers to see where it stands in the compelling corridor of premium SUVs.

  • The latest Rivian R1S banks a quad / Tri-motor electric setup (depending on trim).
  • The respective architecture spurs it to deliver a stunning 850 horsepower and nearly 1,103  lb-ft of torque.
  • While still being composed for family duty, this three row SUV dashes from 0-60 mph in roughly 3 seconds with a top speed of 125 mph.

With such interesting performance figures, it carries the confidence of an overbuilt expedition machine that squarely positions itself against the adversaries like Tesla Model X, Mercedes-Benz EQS SUV, and BMW iX.

But do you know what really sets it apart from its rivals?

Its emphasis on usable real-world performance rather than bragging right by harmoniously fusing off-road credibility and luxury-EV refinement of Rivian R1S.

However, its narrative could have been flawless if its sheer mass is only for dominance and presence as there are some scenarios in which its wide stature struggles (which we will discuss in the second half of the article).

So, we welcome you to explore this thoroughly researched write-up on the amusing specifications of the latest Rivian R1S comprising accurate engine & performance details, real-world fuel economy figures, infotainment insights to pricing.

Engine & Performance

Engine Type:Quad / Tri-motor electric setup (depending on trim)
Displacement/Battery Capacity:Battery: ~ 140 kWh liquid-cooled lithium-ion
Power Output:Power (Tri-Motor Max): ~ 850 horsepower
Torque:~ 1,103 lb-ft
0-60 mph (0-100km/h):~ 2.8–2.9 seconds (for the high-performance Tri-Motor)
Top Speed:~ 130 mph (governed)
Number of Cylinders/Motors:Either 2 (dual) or 3 / 4 (tri or quad)
Fuel Type/Electric:Electric
Emission Standard:Electric vehicle (zero tailpipe emissions)

Transmission

Type:Single-speed automatic (EV reduction gear)
Number of Gears:1
Drive Type: (FWD / RWD / AWD / 4WD):AWD (Dual-Motor), AWD with torque-vectoring (Tri-Motor / Quad-Motor)

Dimensions & Weight

Overall Length:200.8 in (≈ 5,100 mm)
Overall Width:87.1 in (≈ 2,212 mm)
Overall Height:77.3 in (≈ 1,964 mm)
Wheelbase:121.1 in (≈ 3,076 mm)
Ground Clearance8.2 in (≈ 208 mm) (this is a lower-setting figure)
Kerb Weight:6,462 lb (≈ 2,930 kg) for the Dual-Motor AWD Standard version
Boot SpaceBehind 1st row: ~ 104.7 cu ft (≈ 2,966 L)
Behind 2nd row: ~ 46.7 cu ft (≈ 1,322 L)
Behind 3rd row: ~ 17.6 cu ft (≈ 498 L)

Fuel Efficiency

Fuel Tank Capacity/ Battery Pack:92.5 kWh (Standard) / 109.4 kWh (Large) / 141.5 kWh (Max)
Mileage (City):~ 267 mi (city, EPA) for some trims (~ 73 MPGe)
Mileage (Highway):~ 236 mi (highway, EPA) for some trims (~ 65 MPGe)
Mileage (EPA/Company Certified):Standard: ~ 270 mi
Large: ~ 329 mi
Max: ~ 410 mi (Dual-Motor) / ~ 371 mi (Tri-Motor)

Suspension & Brakes

Front Suspension:Double-wishbone air suspension (front)
Rear Suspension:Multi-link air suspension (rear)
Front Brakes:13.5-inch ventilated disc brakes (front)
Rear Brakes:12.9-inch ventilated disc brakes (rear)
Steering Type:Rack-and-pinion electric power steering

Wheels & Tyres

Wheel Type: (Steel/Alloy)Alloy
Tyre Size:275/65R20 or 275/50R22 (depending on wheel option)
Spare Tyre:Compact spare: 195/70-20 on a 20″ steel wheel

Capacity

Seating Capacity:7 seats (three rows)
Number of Doors:5 doors (including tailgate)

Features & Technology

Infotainment System:15.6-inch central infotainment touchscreen, using Rivian’s proprietary UI
Connectivity: (Apple CarPlay, Android Auto, etc.)No Apple CarPlay or Android Auto — Rivian relies on its own Connect+ system for streaming (Google Cast, Alexa, Spotify, etc.)
Instrument Cluster: (Analog/Digital)Digital instrument cluster, ~12.3-inch display in front of the driver
AC Type: (Manual/Automatic/Climate Control)Dual-zone automatic climate control
Other Features:Second-row 6.8-inch screen for climate, all three rows get USB-C ports, dual wireless phone charging pads, built-in flashlight in driver door, over-the-air updates

Safety

Airbags:Front driver + passenger, knee airbags, side airbags, roof-rail (curtain) airbags for first and second rows
ABS with EBD:Yes, 4-wheel ABS with electric brake-force distribution / brake assist
Traction Control:Yes, driveline traction control
ESC/VSC:Electronic stability control (ESC) + roll-stability control
ISOFIX:The R1S supports child-seat anchoring (ISOFIX / LATCH-style) — reinforced anchor points / child seat locks are part of rear seat design.
Parking Sensors/Camera:Front + rear parking sensors + rear-view camera + 10-camera surround-view system (aerial view)
Additional Safety Features:Forward collision warning + collision mitigation

Rear cross-traffic alert

Lane keep assist + lane departure warning

Driver-monitoring system (in-car camera for distraction / alertness)

Tire-pressure monitoring system

Brake-hold feature, dynamic brake support, kinetic roll control

SOS emergency response / e-call system

Price (If applicable)

Ex-Showroom Price:US$ 77,700 (for the base Dual Standard)
On-Road Price (Estimated, Including Fees & Taxes)::US$ 79,500–83,000 (factoring in destination charge, taxes, and local fees — depending on configuration)

And that’s the astounding and provocative features of the Rivian R1S that acts as a rebuttal for those who still think electric SUVs are soft, it feels like a deliberate manifesto by Rivian.

A refreshed all-electric SUV that doesn’t just challenges legacy luxury haulers but casually outmaneuvers them with a personality test that seems equal parts silent storm and a trek-trained athlete.

It is a rare EV that behaves  like a grand tourer on highways and a back-country machine when the pavement ends but as we have mentioned in the overview that its narrative isn’t a bed of roses and this electric SUV comes with a caveat.

So, put the spotlight on its inadequateness!

The new Rivian R1S heavy stature feels more physics-limited even with electric thrust, tight urban maneuvering, and certain off-road transitions, you can say it appears like physics rules are offended by it and pulling its strings.

Additionally, sometimes its very ambition becomes its biggest shortcoming as it becomes almost too advanced for urban buyers, many of whom will never experience its off-road hardware or its battery-devouring quad-motor transits.

Irrespective of it, Rivian R1S is an electric outcome of quietly obsessive engineering that features a chassis tuned for actual exploration, a powertrain carved to shrug off brutal gradients, and an interior that treats sustainability.
